Item Details

Item Name:

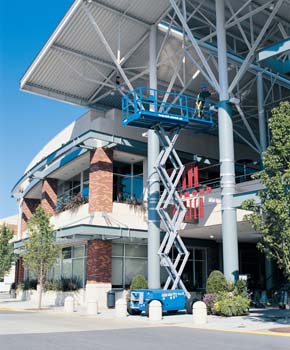

Genie Lift - Dual Wheel Disc Brakes

Item #:

GEN-GS-3268DC

Average Rating:

Product Image Gallery:

Setup fees may apply, please contact us for details.

Specifications
MODELS	GS-3268 DC
MEASUREMENTS	US
Working height maximum	38 ft
A. Platform height	32 ft
B. Platform height – stowed	4 ft 3.75 in
C. Platform length – outside -extended	8 ft 3 in 13 ft
Slide-out platform extension deck	5 ft
D. Platform width – outside	5 ft 1 in
Toeboard height	6 in
E. Height – stowed Rails lowered	8 ft 3 in 6 ft
F. Length – stowed Rails lowered	8 ft 9 in 13 ft 9 in
G. Width	5 ft 8 in
H. Wheelbase	6 ft 1 in
I. Ground clearance – center	8 in
PRODUCTIVITY
Maximum platform capacity	4
Lift capacity	1,000 lbs
Extension deck capacity	300 lbs
Drive speed – stowed	3.0 mph
Drive speed – raised	0.5 mph
Gradeability – stowed	25%
Turning radius – inside	5 ft
Turning radius – outside	12 ft 1 in
Raise/lower speed	40/37 sec
Controls	Proportional
Drive	Dual rear wheel
Multiple disc brakes	Dual rear wheel
Tires – foam-filled low profile turf	12.5 x 22 in
POWER
Power source	48 V DC (eight 225 Ah batteries)
Hydraulic system capacity	9.5 gal
WEIGHT
	7,868 lbs
STANDARDS COMPLIANCE	ANSI A92.6, CSA B354.2, CE Compliance, AS 1418.10
