Item Details

Item Name:

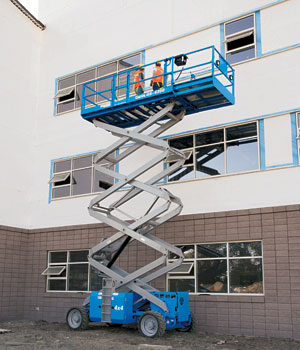

Genie Lift - 4WD

Item #:

GEN-GS-4390RT

Average Rating:

Product Image Gallery:

Setup fee may apply, please contact us for details.

SPECIFICATIONS
MODEL	GS-4390 RT
MEASUREMENTS	US
Working height maximum	49 ft
A. Platform height maximum	43 ft
B. Platform height - stowed	5 ft 11 in
C. Platform length: Outside, extended – single deck Outside, extended – dual deck	13 ft .5 in 17 ft 6.25 in 21 ft 6.5 in
D. Slide-out platform extension deck- front	5 ft
E. Slide-out platform extensions deck - rear	4 ft
F. Platform width - outside	6 ft
G. Height: stowed stowed – rails lowered	9 ft 7.5 in 7 ft 4.75 in
H. Length – stowed: single deck dual deck with outriggers	12 ft 11.25 in 13 ft .5 in 16 ft
I. Length – extended: single deck Dual deck	17 ft 8.5 in 21 ft 6.5 in
J. Width: standard tires high flotation tires	7 ft 6 in 8 ft 5 in
K. Wheelbase	9 ft 4 in
L. Ground clearance - center	1 ft 2 in
PRODUCTIVITY
Maximum platform occupancy	7
Lift capacity	1,500 lbs
Lift capacity – extension deck	500 lbs
Drive height	Full height
Drive speed – stowed	5.0 mph
Drive speed – raised	0.7 mph
Gradeability – stowed	50%
Maximum outrigger leveling: front to back Side to side	7 degree 12 degree
Turning radius – inside Turning radius - outside	7 ft 1 in 17 ft 6 in
Raise/lower speed	45/39 sec
Controls	Proportional
Drive	Four wheel
Tires – foam-filled rough terrain	12 x 33 in
POWER
Power source	Ford DSG-423 4 cylinder gas/LPG 75 hp (56 kW) Deutz D2011L03i 3 cylinder diesel 49 hp (36 kW) air cooled
Auxiliary power unit	12V DC
Hydraulic tank capacity	30 gal
Fuel tank capacity	30 gal
WEIGHT
Weight:	13,086 lbs
With outriggers	14,761 lbs
STANDARDS COMPLIANCE:	ANSI A92.6, CSA B354.4, CE Compliance, AS 1418.10

FEATURES

STANDRD FEATURES

MEASUREMENTS

GS-4390

49 ft (15.11 m) working height

Up to 1,500 lb (680 kg) lift capacity

PRODUCTIVITY

156.5 x 72 in (3.98 x 1.83 m) steel frame platform

60 in (1.52 cm) extension deck

Replaceable aluminum deck

Proportional lift and drive

Onboard diagnostic system

AC power to platform

Two self-closing gates

4WD

Automatic leveling hydraulic outriggers

Oscillating axle

Positive traction control

Four-wheel braking

Slide-out engine tray

Foam-filled rough terrain tires

Tilt level sensor with audible alarm

Descent alarm

Horn

Hour meter

POWER

12 V DC auxiliary power

Item Options

Air line to platform, 3/8 in. inner diameter

GS-3390-1 (Add $845.00)

Dual slide-out extension deck package (5 ft. front/4 ft. rear)

GS-3390-2 (Add $1,585.00)

Hydraulic oil cooler

GS-3390-3 (Add $1,615.00)

Biodegradable hydraulic fluid

GS-3390-4 (Add $898.00)

AC generator (110V/60Hz, 3000W or 220V/50Hz, 2500W)

GS-3390-5 (Add $3,815.00)

Welder ready package (includes hydraulic oil cooler)

GS-3390-6 (Add $7,995.00)

ArcPro 275 heavy duty welder package (includes hydraulic oil cooler)

GS-3390-7 (Add $12,510.00)

Automatic leveling hydraulic outriggers (GS-3390 and Gs-4390 only)

GS-3390-8 (Add $9,330.00)

Oscillating axle (GS-4390 and GS-5390 only)

GS-3390-9 (Add $4,615.00)

Diesel exhaust scrubber with spark arrestor

GS-3390-10 (Add $3,685.00)

All Engines

GS-3390-11 (Add $338.00)

All engines - Cold Weather Package plus artic hoses (lift hoses)

GS-3390-12 (Add $605.00)

High floatation - air-filled tires

GS-3390-13 (Add $3,580.00)

High floatation, foam-filled tires

GS-3390-14 (Add $5,045.00)

Foam-filled, non-marking, rough terrain tires

GS-3390-15 (Add $2,845.00)

Motion alarm

GS-3390-16 (Add $230.00)

Dual flashing beacons

GS-3390-17 (Add $380.00)

LPG tank only, steel, 33.5 lb capacity

GS-3390-18 (Add $510.00)
