SPECIFICATIONS

MODEL

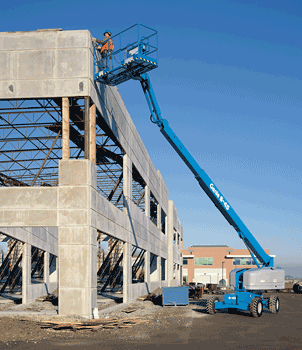

S-40

MEASUREMENTS

US

Working height maximum

46 ft

Platform height maximum

40 ft

Horizontal reach maximum

31 ft 8 in

Below ground reach

3 ft 2 in

A. Platform length – 8 ft model

     Platform length – 6 ft model

3 ft

2 ft 6 in

B. Platform width – 8 ft model

     Platform width – 6 ft model

8 ft

6 ft

C. Height – stowed

8 ft 2 in

D. Length – stowed

     Length – transport (jib tucked under)

24 ft 3 in

N/A

E. Width (with standard tires)

7 ft 6 in

F. Wheelbase

7 ft 3 in

G. Ground clearance – center

1 ft .5 in

PRODUCTIVITY

Lift capacity

500 lbs

Platform rotation

160 degree

Vertical jib rotation

N/A

Turntable rotation

360 degree continuous

Turntable tailswing

2 ft 10 in

Drive speed – stowed

4.8 mph

Drive speed – raised or extended

0.68 mph

Gradeability – 2WD - stowed

30%

Gradeability – 4WD - stowed

40%

Turning radius – inside

6 ft 8 in

Turning radius – outside

15 ft 8 in

Controls

12V DC proportional

Tires – RT Lug

12-16.5 NHS

POWER

Power source

Ford DSG-423 4 cylinder gas/LPG 75 hp (56 kW)

Deutz D2011L03i 3 cylinder diesel 46 hp (34.3 kW)

Perkins 404D-22 4 cylinder diesel 51 hp (38 kW)

Auxiliary power unit

12V DC

Hydraulic tank capacity

45 gal

Fuel tank capacity

20 gal

WEIGHT

Weight:

11,650 lbs

STANDARDS COMPLIANCE:

ANSI A92.5, CSA B354.4, CE Compliance

FEATURES

EASILY CONFIGURED TO MEET YOUR NEEDS

PLATFORM OPTIONS

Steel 8 ft (2.44 m) (standard)

Steel 6 ft (1.83 m)

Steel 6 or 8 ft (1.83 or 2.44 m) tri-entry

Steel 4 ft (1.22 m)

Steel 5 ft (1.52 m)

JIB OPTIONS

Non-jib

5 ft (1.52 m) jib boom

POWER OPTIONS

Ford gas/LPG 75 hp (56 kW)

Deutz diesel 46 hp (34.3 kW)

Perkins diesel 51 hp (38 kW)

DRIVE OPTIONS

2WD

4WD

AXLE OPTIONS

Active oscillation

Non-oscillating

TIRE OPTIONS

Rough terrain air-filled (standard)

Rough terrain foam-filled

Rough terrain non-marking (air or foam-filled)

High flotation air-filled

Sealant treated air-filled

STANDARD FEATURES

MEASUREMENTS

S-40

46 ft (14.20 m) working height

31 ft 8 in (9.65 m) horizontal reach

Up to 500 lb (227 kg) lift capacity

PRODUCTIVITY

Self-leveling platform

Hydraulic platform rotation

Fully proportional Hall effect joystick controls

Fuel select switch on platform and ground control panels (Gas/LPG models)

Drive enable

AC power cord to platform

Tilt alarm

Descent alarm

Hour meter

Horn

360 degree continuous turntable rotation

Locking, low profile turntable covers

Positive traction drive

Two speed wheel motors

POWER

All engines are emissions compliant

12 V DC auxiliary power

Anti-restart engine protection

Auto engine fault shutdown

Intake air heater (Deutz engine)
