We are your source for Telescopic Booms.

Item Details

Item Name:

Genie Lift - Positive Traction

Item #:

GEN-S-602WD

Average Rating:

Product Image Gallery:

Set up fee may apply, please contact us for details.

SPECIFICATIONS
MODEL	S-60
MEASUREMENTS	US

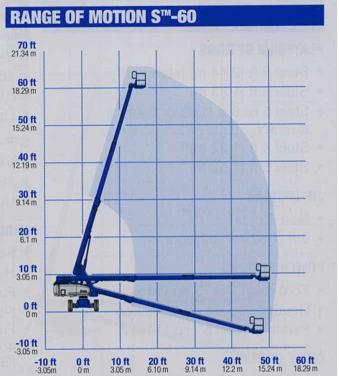

Working height maximum	66 ft
Platform height maximum	60 ft
Horizontal reach maximum	50 ft 10 in
Below ground reach	5 ft 7 in
A. Platform length – 8 ft model Platform length – 6 ft model	3 ft 2 ft 6 in
B. Platform width – 8 ft model Platform width – 6 ft model	8 ft 6 ft
C. Height – stowed	8 ft 11 in
D. Length – stowed Length – transport (jib tucked under)	27 ft 11 in N/A
E. Width (with standard tires)	8 ft 2 in
F. Wheelbase	8 ft 2.5 in
G. Ground clearance – center	1 ft 2.5 in
PRODUCTIVITY
Lift capacity	500 lbs
Platform rotation	160 degree
Vertical jib rotation	N/A
Turntable rotation	360 degree continuous
Turntable tailswing	4 ft
Drive speed – 2WD stowed	4.0 mph
Drive speed – 4WD stowed	3.0 mph
Drive speed – raised or extended	0.68 mph
Gradeability – 2WD - stowed	30%
Gradeability – 4WD - stowed	45%
Turning radius – inside	7 ft 9 in
Turning radius – outside	18 ft 2 in
Controls	12V DC proportional
Tires – RT Lug	355/55D 625
POWER
Power source	Ford DSG-423 4 cylinder gas/LPG 75 hp (56 kW) Deutz D2011L03i 3 cylinder diesel 46 hp (34.3 kW) Perkins 404D-22 4 cylinder diesel 51 hp (38 kW)
Auxiliary power unit	12V DC
Hydraulic tank capacity	45 gal
Fuel tank capacity	35 gal
WEIGHT
2WD	20,520 lbs
4WD	20,690 lbs
STANDARDS COMPLIANCE:	ANSI A92.5, CSA B354.4, CE Compliance, AS 1418.10
