SPECIFICATIONS

MODEL

S-125

MEASUREMENTS

US

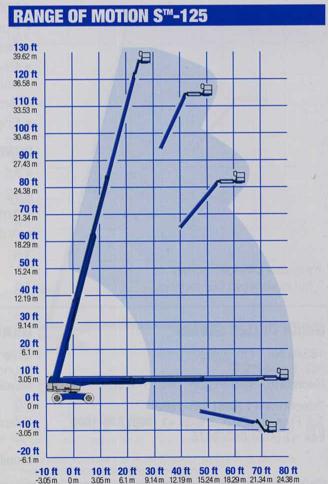

Working height maximum

131 ft 2 in

Platform height maximum

125 ft 2 in

Horizontal reach maximum

80 ft

Below ground reach

10 ft 9 in

A. Platform length – 8 ft model

     Platform length – 6 ft model

3 ft

2 ft 6 in

B. Platform width – 8 ft model

     Platform width – 6 ft model

8 ft

6 ft

C. Height – stowed

10 ft 1 in

D. Length – stowed

     Length – transport (jib tucked under)

46 ft 9 in

39 ft 11 in

E. Width – axle retracted

     Width – axle extended

8 ft 2 in

11 ft

F. Wheelbase

12 ft

G. Ground clearance - center

1 ft 5.5 in

PRODUCTIVITY

Lift capacity

500 lbs

Platform rotation

160 degrees

Vertical jib rotation

135 degrees

Turntable rotation

360 degree continuous

Turntable tailswing – axle retracted

Turntable tailswing – axle extended

5 ft 6 in

4 ft 1 in

Drive speed – stowed

Drive speed – raised or extended below 80 ft

Drive speed - raised/extended above 80 ft

3.0 mph

0.68 mph

0.34 mph

Gradeability – stowed

40%

Turning radius – axle retracted: inside

                                               outside

13 ft 2 in

22 ft 2 in

Turning radius – axle extended: inside

                                                outside

8 ft 6 in

18 ft 10 in

Controls

12V DC proportional

Tires – RT lug

445/65 D22.5

POWER

Power source

Deutz TD 2011 L04i 4-cylinder turbo diesel, 74 hp (55 kW)

Perkins 804-33T 4-cylinder turbo diesel, 83 hp (62 kW)

Cummins B3.3T 4-cylinder turbo diesel, 80 hp (60 kW)

Auxiliary power unit

12V DC

Hydraulic tank capacity

55 gal

Fuel tank capacity

40 gal

WEIGHT

44,640 lbs

STANDARDS COMPLIANCE:

ANSI A92.5, CSA B354.4, CE Compliance, AS 1418.10

FEATURES

EASILY CONFIGURED TO MEET YOUR NEEDS

PLATFORM

Steel 8 ft (2.44 m) (standard)

Steel 6 ft (1.83 m)

Steel 6 or 8 ft (1.83 or 2.44 m) tri-entry

Steel 4 ft (1.22 m)

Steel 5 ft (1.52 m)

JIB OPTIONS

Non-jib

5 ft (1.52 m) jib boom

POWER

Deutz turbo diesel 74 hp (55 kW)

Perkins diesel 83 hp (62 kW)

Cummins diesel 80 hp (60 kW)

DRIVE

4WD (standard)

4WS (standard)

AXLE

Extendable axles (standard)

TIRE

Rough terrain foam-filled (standard)

STANDARD FEATURES

MEASUREMENTS

S-125

131 ft 2 in (40.15 m) working height

80 ft (24.38 m) horizontal reach

500 lb (227 kg) lift capacity

PRODUCTIVITY

Self-leveling platform

Hydraulic platform rotation

Fully proportional Hall effect joystick controls

Hydraulic oil cooler

Drive enable

AC power cord to platform

Horn

Hour meter

Tilt alarm

Descent alarm

Alarm package

360 degree continuous turntable rotation

Locking low profile turntable covers

Positive traction drive

Two speed wheel motors

Configure controls to limit lift height to 80 ft

Ground control box cover

Engine status display

POWER

All engines are emissions compliant

12 V DC auxiliary power

Anti-restart engine protection

Auto engine fault shutdown
