We are your source for Telescopic Booms.

Item Details

Item Name:

Genie Lift - 4 Wheel Drive

Item #:

GEN-S-105WJIB

Average Rating:

Product Image Gallery:

Set up fees may apply, please contact us for details.

SPECIFICATIONS
MODEL	S-105
MEASUREMENTS	US

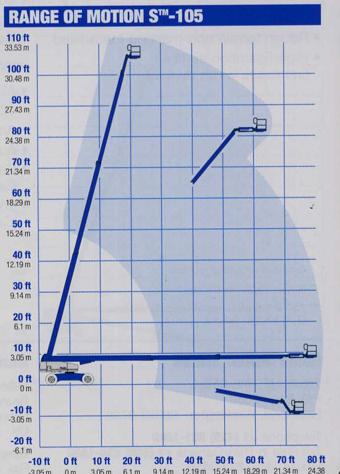

Working height maximum	111 ft
Platform height maximum	105 ft
Horizontal reach maximum	80 ft
Below ground reach	10 ft
A. Platform length – 8 ft model Platform length – 6 ft model	3 ft 2 ft 6 in
B. Platform width – 8 ft model Platform width – 6 ft model	8 ft 6 ft
C. Height – stowed	10 ft 1 in
D. Length – stowed Length – transport (jib tucked under)	46 ft 39 ft 11 in
E. Width – axle retracted Width – axle extended	8 ft 2 in 11 ft
F. Wheelbase	12 ft
G. Ground clearance - center	1 ft 5.5 in
PRODUCTIVITY
Lift capacity	500 lbs
Platform rotation	160 degrees
Vertical jib rotation	135 degree
Turntable rotation	360 degree continuous
Turntable tailswing – axle retracted Turntable tailswing – axle extended	5 ft 6 in 4 ft
Drive speed – stowed Drive speed – raised or extended	3.0 mph 0.68 mph
Gradeability – stowed	40%
Turning radius – axle retracted: inside outside	13 ft 7 in 21 ft 7 in
Turning radius – axle extended: inside outside	9 ft 19 ft 10 in
Controls	12V DC proportional
Tires – RT lug	385/65D 22.5
POWER
Power source	Deutz TD 2011 L04i 4-cylinder turbo diesel, 74 hp (55 kW) Perkins 804-33T 4-cylinder turbo diesel, 83 hp (62 kW) Cummins B3.3T 4-cylinder turbo diesel, 80 hp (60 kW)
Auxiliary power unit	12V DC
Hydraulic tank capacity	55 gal
Fuel tank capacity	40 gal
WEIGHT
40,000 lbs
STANDARDS COMPLIANCE:	ANSI A92.5, CSA B354.4, CE Compliance, AS 1418.10
