Articulating Booms
We are your source for Articulating Booms.
 Genie Lift - With Rotating Jib
Item Details
Genie Lift - With Rotating Jib
Item Name:
Genie Lift - With Rotating Jib
Item #:
GEN-Z-30/20NWRJIB
Average Rating:

Product Image Gallery:

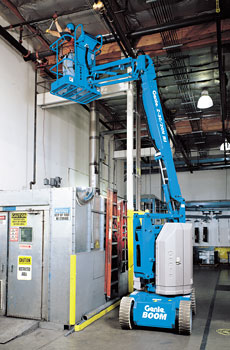

Genie Lift - With Rotating Jib

Set up fees may apply, please contact us for details.

SPECIFICATIONS



MODEL

Z-30/20N RJ

MEASUREMENTS

US

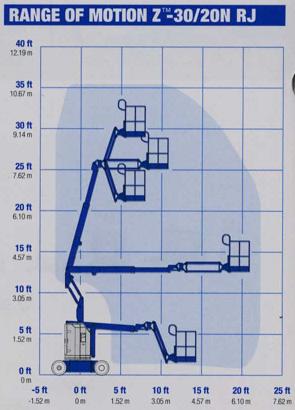

Working height maximum

35 ft 2 in

Platform height maximum

29 ft 2 in

Horizontal reach maximum

20 ft 6 in

Up and over clearance maximum

12 ft 8 in

A. Platform length

2 ft 6 in

B. Platform width

3 ft 11 in

C. Height – stowed

6 ft 6.5 in

D. Length – stowed

17 ft 5 in

E. Storage height

7 ft 4 in

F. Storage length

12 ft

G. Width

3 ft 11 in

H. Wheelbase

5 ft 3 in

I. Ground clearance - center

3.5 in

PRODUCTIVITY



Lift capacity

500 lbs

Platform rotation

180 degrees

Vertical jib rotation

139 degrees

Horizontal jib rotation

180 degrees

Turntable rotation

355 degree non-continuous

Turntable tailswing

Zero

Drive speed – stowed

Drive speed – raised

3.0 mph

0.68 mph

Gradeability – stowed

35%

Turning radius – inside

5 ft 5 in

Turning radius – outside

10 ft 7 in

Controls

24V DC proportional

Tires – air-filled

22 x 7 x 17.75 in

POWER



Power source

48 V DC (eight 6 V batteries 350 Ah capacity)

Auxiliary power unit

24V DC

Hydraulic tank capacity

4 gal

WEIGHT



14,220 lbs



STANDARDS COMPLIANCE:

ANSI A92.5, CSA B354.4, CE Compliance, AS 1418.10

FEATURES

EASILY CONFIGURED TO MEET YOUR NEEDS

PLATFORM

Steel 3 ft 10 in (1.17 m) (standard)

JIB OPTIONS

4 ft (1.22 m) jib boom

4 ft (1.22 m) horizontal rotating jib boom

POWER

48V DC power source

DRIVE

2WD

TIRE

Solid rubber non-marking

STANDARD FEATURES

MEASUREMENTS

Z-30/20N RJ

35 ft 2 in (10.89 m) working height

20 ft 6 in (6.25 m) horizontal reach

12 ft 8 in (3.86 m) up and over clearance

Up to 500 lb (227 kg) lift capacity

PRODUCTIVITY

4 ft (1.22 m) jib with 139 degree working range

Self-leveling platform

Hydraulic platform rotation

Fully proportional controls

Thumb rocker steer

Drive enable

AC power cord to platform

Horn

Hour meter

Tilt alarm

Descent & travel alarms

355 degrees non-continuous turntable rotation

Zero tailswing and front arm swing

Sep-Ex drive system

POWER

48V deep cycle battery pack

24V DC auxiliary power

Universal 30A battery smart charger

Item Options
Platform swing gate
Z-30/20N-1 (Add $630.00)
Platform 1/2 height mesh inserts with swing gate
Z-30/20N-2 (Add $830.00)
Air line to platform, 3/8 in. inner diameter
Z-30/20N-3 (Add $750.00)
Aircraft protection (includes platform foam padding and padded disable system)
Z-30/20N-4 (Add $3,940.00)
Biodegradable hydraulic fluid
Z-30/20N-5 (Add $270.00)
Fire resistant hydraulic fluid
Z-30/20N-6 (Add $1,015.00)
Hostile environment kit (cylinder bellows, boom wiper seals, platform control box cover)
Z-30/20N-7 (Add $4,250.00)
Power inverter, 800W, 120V AC, 60 Hz
Z-30/20N-8 (Add $6,720.00)
EE fire protection rating
Z-30/20N-9 (Add $850.00)
Flashing beacon for alarm package
Z-30/20N-10 (Add $140.00)
Lockable platform control box cover
Z-30/20N-11 (Add $355.00)
Battery charge indicator (BCI)
Z-30/20N-12 (Add $550.00)
Low voltage interrupt with BCI (prevents battery over discharge)
Z-30/20N-13 (Add $1,055.00)
Platform work lights (includes two 48V 36W lights)
Z-30/20N-14 (Add $915.00)
Tool tray
Z-30/20N-15 (Add $250.00)
