SPECIFICATIONS

MODEL

Z-30/20N

MEASUREMENTS

US

Working height maximum

36 ft

Platform height maximum

30 ft

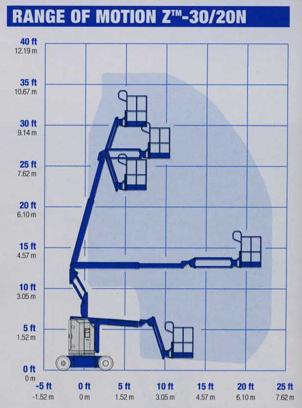

Horizontal reach maximum

21 ft 5 in

Up and over clearance maximum

12 ft 8 in

A. Platform length

2 ft 6 in

B. Platform width

3 ft 11 in

C. Height – stowed

6 ft 6.5 in

D. Length – stowed

16 ft 9 in

E. Storage height

6 ft 10 in

F. Storage length

11 ft 6 in

G. Width

3 ft 11 in

H. Wheelbase

5 ft 3 in

I. Ground clearance - center

3.5 in

PRODUCTIVITY

Lift capacity

500 lbs

Platform rotation

180 degrees

Vertical jib rotation

139 degrees

Horizontal jib rotation

N/A

Turntable rotation

355 degree non-continuous

Turntable tailswing

Zero

Drive speed – stowed

Drive speed – raised

3.0 mph

0.68 mph

Gradeability – stowed

35%

Turning radius – inside

5 ft 5 in

Turning radius – outside

10 ft 7 in

Controls

24V DC proportional

Tires – air-filled

22 x 7 x 17.75 in

POWER

Power source

48 V DC (eight 6 V batteries 350 Ah capacity)

Auxiliary power unit

24V DC

Hydraulic tank capacity

4 gal

WEIGHT

14,170 lbs

STANDARDS COMPLIANCE:

ANSI A92.5, CSA B354.4, CE Compliance, AS 1418.10

FEATURES

EASILY CONFIGURED TO MEET YOUR NEEDS

PLATFORM

Steel 3 ft 10 in (1.17 m) (standard)

JIB OPTIONS

4 ft (1.22 m) jib boom

4 ft (1.22 m) horizontal rotating jib boom

POWER

48V DC power source

DRIVE

2WD

TIRE

Solid rubber non-marking

STANDARD FEATURES

MEASUREMENTS

Z-30/20N

36 ft (11.14 m) working height

21 ft 5 in (6.53 m) horizontal reach

12 ft 8 in (3.86 m) up and over clearance

Up to 500 lb (227 kg) lift capacity

PRODUCTIVITY

4 ft (1.22 m) jib with 139 degree working range

Self-leveling platform

Hydraulic platform rotation

Fully proportional controls

Thumb rocker steer

Drive enable

AC power cord to platform

Horn

Hour meter

Tilt alarm

Descent & travel alarms

355 degrees non-continuous turntable rotation

Zero tailswing and front arm swing

Sep-Ex drive system

POWER

48V deep cycle battery pack

24V DC auxiliary power

Universal 30A battery smart charger
