Genie Lift - 2 Wheel Drive, Bi-Energy

Items that do not have prices listed on the site, please call us or fill out the price request on the same page. Odds are we have the item in stock!

Español

¿Necesita ayuda en español? ¡Oprima aquí!

Category

Articulating Booms

We are your source for Articulating Booms.

Item Details

Item Name:

Genie Lift - 2 Wheel Drive, Bi-Energy

Item #:

GEN-Z-34/22-Bi-Energy

Average Rating:

Product Image Gallery:

Set up fees may apply, please contact us for details.

SPECIFICATIONS
MODEL	Z-34/22 Bi-Energy
MEASUREMENTS	US

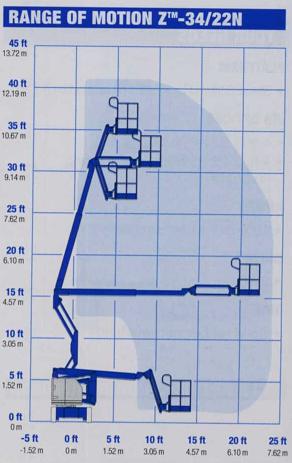

Working height maximum	40 ft 6 in
Platform height maximum	34 ft 6 in
Horizontal reach maximum	22 ft 3 in
Up and over clearance maximum	14 ft 11 in
A. Platform length	2 ft 6 in
B. Platform width	4 ft 8 in
C. Height – stowed	6 ft 7 in
D. Length – stowed	18 ft 6 in
E. Storage height	7 ft 5 in
F. Storage length	13 ft 5 in
G. Width	5 ft 8 in
H. Wheelbase	6 ft 2 in
I. Ground clearance - center	6 in
PRODUCTIVITY
Lift capacity	500 lbs
Platform rotation	180 degrees
Vertical jib rotation	139 degrees
Turntable rotation	355 degree non-continuous
Turntable tailswing	Zero
Drive speed – stowed Drive speed – raised	4.0 mph 0.68 mph
Gradeability – stowed	30%
Turning radius – inside	5 ft 9 in
Turning radius – outside	13 ft 1 in
Controls	24V DC proportional
Tires – air-filled	9 x 14.5 in
POWER
Power source	48V DC (eight 6 V batteries 315 Ah capacity) with Kubota 12 Hp (8.9 kw) diesel driven alternator
Auxiliary power unit	24V DC
Hydraulic tank capacity Fuel Tank Capacity	4 gal 9 gal
WEIGHT
12,000 lbs
STANDARDS COMPLIANCE:	ANSI A92.5, CSA B354.4, CE Compliance, AS 1418.10

FEATURES

EASILY CONFIGURED TO MEET YOUR NEEDS

PLATFORM OPTIONS

Steel 4 ft 8 in (1.42 m) (standard)

Steel 3 ft 10 in (1.17 m)

JIB

4 ft (1.22 m) jib boom

POWER

48V DC power source

DRIVE

2WD

TIRE OPTIONS

Industrial air-filled (standard)

Industrial foam-filled

Industrial non-marking air-filled

Industrial non-marking foam-filled

Sealant treated air-filled

STANDARD FEATURES

MEASUREMENTS

Z-34/22

40 ft 6 in (12.52 m) working height

22 ft 3 in (6.78 m) horizontal reach

14 ft 11 in (4.55 m) up and over clearance

Up to 500 lb (227 kg) lift capacity

PRODUCTIVITY

4 ft (1.22 m) jib with 139 degree working range

Self-leveling platform

Hydraulic platform rotation

Fully proportional controls

Thumb rocker steer

Drive enable

AC power cord to platform

Horn

Hour meter

Tilt alarm

Descent & travel alarms

355 degrees non-continuous turntable rotation

Zero tailswing

Sep-Ex drive system

POWER

48V deep cycle battery pack

24V DC auxiliary power

25 Amp 48V on-board charger

Universal 30A battery smart charger

Onboard alternator powered by Kubota 12 hp (8.9 kW) engine (Bi-energy model only)

Battery charge indicator-BCI (Bi-energy model only)

Item Options

Platform swing gate

Z-34/22-1 (Add $635.00)

Platform 1/2 height mesh inserts with swing gate

Z-34/22-2 (Add $835.00)

Air line to platform, 3/8 in. inner diameter

Z-34/22-3 (Add $755.00)

Aircraft protection (includes platform foam padding and padded disable system)

Z-34/22-4 (Add $3,940.00)

Hostile environment kit (cylinder bellows, boom wiper seals, platform control box cover)

Z-34/22-5 (Add $4,290.00)

Fire resistant hydraulic fluid

Z-34/22-6 (Add $1,015.00)

Biodegradable hydraulic fluid

Z-34/22-7 (Add $330.00)

Power inverter, 800W, 120V AC, 60 Hz

Z-34/22-8 (Add $6,785.00)

EE fire protection rating

Z-34/22-9 (Add $855.00)

Kubota Diesel (Z-34/22 Bi-Energy only) Includes - 5W-40 Syn engine oil, freeze plug heater, 110V battery blanket

Z-34/22-10 (Add $338.00)

Industrial foam-filled tires

Z-34/22-11 (Add $1,660.00)

Non-marking industrial tires

Z-34/22-12 (Add $3,035.00)

Non-marking industrial foam-filled tires

Z-34/22-13 (Add $5,050.00)

Tire sealant (air-filled tires only)

Z-34/22-14 (Add $535.00)

Flashing beacon for alarm package

Z-34/22-15 (Add $140.00)

Lockable platform control box cover

Z-34/22-16 (Add $355.00)

Battery charge indicator (BCI) (standard on Bi-Energy model)

Z-34/22-17 (Add $555.00)

Low voltage interrupt with BCI

Z-34/22-18 (Add $1,065.00)

Low voltage interrupt with BCI (Bi-Energy only)

Z-34/22-19 (Add $515.00)

Platform work lights (includes two 48V 36W lights)

Z-34/22-20 (Add $925.00)

Tool tray

Z-34/22-21 (Add $250.00)
