SPECIFICATIONS

MODEL

Z-40/23N

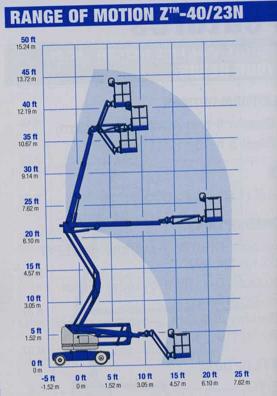

MEASUREMENTS

US

Working height maximum

46 ft 5 in

Platform height maximum

40 ft 5 in

Horizontal reach maximum

22 ft 8 in

Up and over clearance maximum

21 ft 3 in

A. Platform length

2 ft 6 in

B. Platform width

4 ft 8 in

C. Height – stowed

6 ft 6 in

D. Length – stowed

21 ft 5 in

E. Width

4 ft 11 in

F. Wheelbase

6 ft 5 in

G. Ground clearance - center

7 in

PRODUCTIVITY

Lift capacity

500 lbs

Platform rotation

180 degrees

Vertical jib rotation

130 degrees

Turntable rotation

355 degree non-continuous

Turntable tailswing

5 in

Drive speed – stowed

Drive speed – raised

4.5 mph

0.68 mph

Gradeability – stowed

30%

Turning radius – inside

2 ft 11 in

Turning radius – outside

10 ft 6 in

Controls

24V DC proportional

Tires – front

22x7x17.75 in

Tires – rear

25.6 x 7 in

POWER

Power source

48 V DC (eight 6 V batteries)

350 Ah capacity

Drive system

29 V 3 phase AC

Auxiliary power unit

24 V DC

Hydraulic tank capacity

8 gal

WEIGHT

15,230 lbs

STANDARDS COMPLIANCE:

ANSI A92.5, CSA B354.4, CE Compliance, AS 1418.10

FEATURES

EASILY CONFIGURED TO MEET YOUR NEEDS

PLATFORM OPTIONS

Steel 4 ft 8 in (1.42 m) (Z40N only)

Steel 3 ft 10 in (1.17 m) (Standard on Z40N RJ, option on Z40N)

JIB OPTIONS

4 ft (1.22 m) jib boom

4 ft (1.22 m) horizontal rotating jib boom

POWER

48V DC (eight 6V 350 Ah batteries)

DRIVE/STEER

2WD Electric AC

TIRE

Solid rubber non-marking

STANDARD FEATURES

MEASUREMENTS

Z-40/23N

46 ft 5 in (14.32 m) working height

22 ft 8 in (6.91 m) horizontal reach

21 ft 3 in (6.48 m) up and over clearance

Up to 500 lb (227 kg) lift capacity

PRODUCTIVITY

4 ft 11 in (1.50 m) width

2 ft 11 in (.87 m) inside turning radius

4 ft (1.22 m) jib boom with 130 degree working range

Self-leveling platform

Hydraulic platform rotation

Fully proportional controls

Thumb rocker steer

Drive enable

AC power cord to platform

Horn

Hour meter

Tilt alarm

Descent, motion, & travel alarms

Hydraulic filter condition monitor

355 degree non-continuous turntable rotation

Variable speed high efficiency hydraulic power unit

AC electric drive system

Traction control

On-board easy to understand diagnostics

POWER

48V deep cycle battery pack

24V DC auxiliary power

Universal 30A battery smart charger

Battery charge indicator

Low battery voltage interrupt
