Genie Lift - Bi-Energy Boom, includes BCI

Items that do not have prices listed on the site, please call us or fill out the price request on the same page. Odds are we have the item in stock!

Español

¿Necesita ayuda en español? ¡Oprima aquí!

Category

Articulating Booms

We are your source for Articulating Booms.

Item Details

Item Name:

Genie Lift - Bi-Energy Boom, includes BCI

Item #:

GEN-Z-45/25BCI

Average Rating:

Product Image Gallery:

Set up fees may apply, please contact us for details.

SPECIFICATIONS
MODEL	Z-45/25 DC & Bi
MEASUREMENTS	US

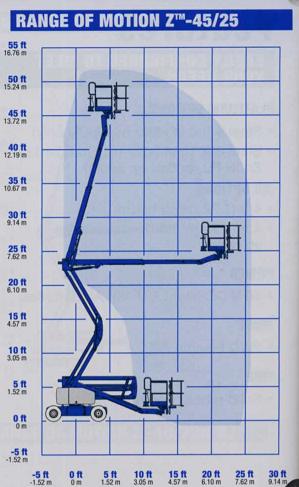

Working height maximum	51 ft 6 in
Platform height maximum	45 ft 6 in
Horizontal reach maximum	25 ft
Up and over clearance maximum	23 ft 1 in
A. Platform length	2 ft 6 in
B. Platform width	6 ft
C. Height – stowed	6 ft 7 in
D. Length – stowed	18 ft 3 in
E. Width	5 ft 10.3 in
F. Wheelbase	6 ft 8 in
G. Ground clearance - center	9.5 in
PRODUCTIVITY
Lift capacity	500 lbs
Platform rotation	180 degrees
Vertical jib rotation	N/A
Turntable rotation	355 degree non-continuous
Turntable tailswing	zero
Drive speed – stowed Drive speed – raised	3.0 mph 0.68 mph
Gradeability – stowed	30%
Turning radius – inside	6 ft
Turning radius – outside	14 ft
Controls	24V DC proportional
Tires	9 x 14.5 in (foam-filled)
POWER
Power source – DC	48V DC (eight 6 V batteries, 350 Ah capacity)
Power source – Bi-Energy	48V DC (eight 6 V batteries, 350 Ah capacity) with Kubota 12 hp (8.9 kW) diesel driven alternator
Auxiliary power unit	24V DC
Hydraulic tank capacity	8 gal
Fuel tank capacity	9 gal
WEIGHT
DC	15,350 lbs
Bi-energy	15,850 lbs
STANDARDS COMPLIANCE:	ANSI A92.5, CSA B354.4, CE Compliance, AS 1418.10

FEATURES

EASILY CONFIGURED TO MEET YOUR NEEDS

PLATFORM OPTIONS

Steel 6 ft (1.83 m) (standard)

Steel 4 or 5 ft (1.22 or 1.52 m)

Steel 6 ft (1.83 m) tri-entry

JIB

Non-jib

Articulating 5 ft (1.52 m) jib boom

POWER

48V DC (eight 6V 350 Ah batteries)

DRIVE/STEER

2WD

TIRE OPTIONS

Industrial foam-filled (standard)

Industrial non-marking foam-filled

STANDARD FEATURES

MEASUREMENTS

Z-45/25

51 ft 6 in (15.87 m) working height

25 ft (7.62 m) horizontal reach

23 ft 1 in (7.04 m) up and over clearance

Up to 500 lb (227 kg) lift capacity

PRODUCTIVITY

Self-leveling platform

Hydraulic platform rotation

Fully proportional controls

Thumb rocker steer

Drive enable

AC power to platform

Horn

Hour meter

Tilt alarm

355 degrees non-continuous turntable rotation

Zero tailswing

POWER

48V deep cycle battery pack

24V DC auxiliary power

25 Amp 48V on-board charger

Onboard alternator powered by Kubota 12 hp (8.9 kW) engine (Bi-energy model only)

Battery charge indicator-BCI (Bi-energy model only)

Universal 30A battery smart charger

Item Options

6 ft. tri-entry steel platform

Z-45/25DC-1 (Add $332.00)

Aircraft platform (includes platform foam padding & padded disable system)

Z-45/25DC-2 (Add $3,940.00)

Platform swing gate

Z-45/25DC-3 (Add $352.00)

Platform 1/2 height mesh inserts with swing gate

Z-45/25DC-4 (Add $464.00)

Air line to platform, 3/8 in. inner diameter

Z-45/25DC-5 (Add $420.00)

Platform auxiliary top rail (6 ft platform only)

Z-45/25DC-6 (Add $493.00)

Biodegradable hydraulic fluid

Z-45/25-7 (Add $898.00)

Fire-resistant hydraulic fluid

Z-45/25-8 (Add $1,015.00)

Inverter, 800W, 120V AC, 60 Hz

Z-45/25DC-9 (Add $3,770.00)

Diesel scrubber muffler with spark arrestor

Z-45/25-10 (Add $2,067.00)

Tow package

Z-45/25-11 (Add $4,368.00)

Kubota Diesel (Z-45/25 Bi-Energy only) Includes - 5W-40 Syn engine oil, freeze plug heater, 110V battery blanket

Z-45/25-12 (Add $338.00)

Non-marking industrial tires

Z-45/25-13 (Add $1,018.00)

Alarm package (flashing beacon and travel alarm)

Z-45/25-14 (Add $370.00)

Lockable platform control box cover

Z-45/25-15 (Add $197.00)

Battery charge indicator (BCI) (standard on Bi-Energy model)

Z-45/25-16 (Add $308.00)

Low voltage interrupt with BCI

Z-45/25-17 (Add $590.00)

Low voltage interrupt with BCI (Bi-Energy only)

Z-45/25-18 (Add $285.00)

Platform work lights (includes two 48V 36W lights)

Z-45/25-19 (Add $514.00)

Tool tray

Z-45/25-20 (Add $138.00)

Panel cradle package (requires 6 ft. tri-entry platform)

Z-45/25-21 (Add $440.00)
