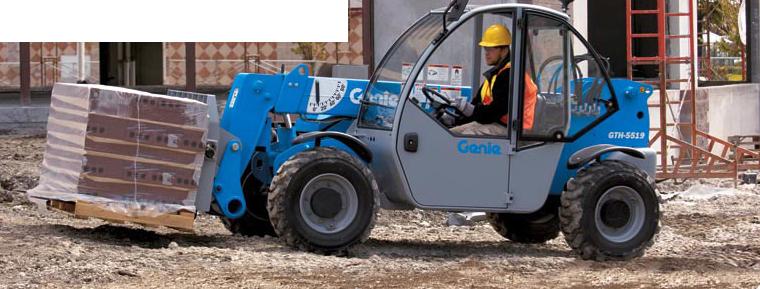

Genie Lift - 11 FT. Reach

Items that do not have prices listed on the site, please call us or fill out the price request on the same page. Odds are we have the item in stock!

Español

¿Necesita ayuda en español? ¡Oprima aquí!

Category

Telehandlers

You can count on us for your Telehandlers needs.

Item Details

Item Name:

Genie Lift - 11 FT. Reach

Item #:

GEN-GTH-5519

Average Rating:

Product Image Gallery:

Set up fee may apply, please contact us for details.

Specifications
Model	GTH-5519
Measurements	US
Maximum lift height	19 ft
Reach	11 ft
Reach at maximum height A. Height, stowed B. Length, stowed (without forks)	1 ft 10 in 6 ft 4 in 12 ft 7 in
Width C. Wheelbase D. Ground clearance, center E. Ground clearance, axle	5 ft 11 in 7 ft 7 in 1 ft 1 in 10 in
Fork cross section	1.6 x 4 in
Productivity
Maximum lift capacity	5,500 lbs
Lift capacity at maximum height	4,400 lbs
Lift capacity at maximum reach	1,900 lbs
Drive speed	15 mph
Draw bar pull	9,300 lbs
Break out force	8,100 lbs
Turning radius, outside (4WS)	11 ft
Auxiliary hydraulic flow	18.5 gpm
Auxiliary hydraulic pressure	3,918 psi
Tires, standard size	12 x 16.5 in, 10 ply
Power
Power Source	Perkins 804D-33 4 cylinder diesel 63 hp (47.0 kW) Deutz D 2011 4 cylinder diesel 68 hp (50.0 kW)
Electrical system	System voltage 12 volt Alternator 95 amp Battery 720 CCA at 0 degree F (-18 degree C)
Hydraulic tank capacity	16.4 gal
Hydraulic system capacity (w/tank)	25 gal
Fuel tank capacity	15.9 gal
Weight
Weight	9,800 lbs
Standards Compliance
ASME B 56.6, ISO 3471, ISO 3449

Features

Standard Features

Measurements

5,500 lb (2,500 kg) maximum lift capacity

19 ft (5.79 m) maximum lift height

11 ft (3.35 m) maximum reach

Productivity

Full time planetary 4-wheel drive

4WS

Operator selectable front, crab, coordinated steering modes

Auxiliary hydraulic circuit

Proportional, reversible, continuous auxiliary hydraulic flow control

Genie manual Quick-Attach system

Power assisted steering

Variable speed hydrostatic drive

Limited slip front axle differential

Inboard wet disc service brakes

Wet disc spring applied parking brake

12 x 16.5 in, air-filled rough terrain tires

Fenders (set of 4)

ROPS/FOPS canopy (ISO compliant)

Single, multi-function, proportional joystick

Tilt steering column

Illuminated gauge and switch panels

Retractable seta belt

Machine level indicator

Right-side screen guard

48 inch carriage and pallet forks

Boom angle indicator

Reverse motion alarm

Power

Perkins 63 hp (47 kW) Tier III diesel engine

Deutz 68 hp (50 kW) Tier III diesel engine

Item Options

Enclosed cab (includes door, clip-in glass inserts, front wiper and tank and cab heater)

GTH-5519-1 (Add $4,160.00)

Cab air conditioner (not available for field installation)

GTH-5519-2 (Add $9,215.00)

Flashing beacon

GTH-5519-3 (Add $325.00)

Work lights (1 cab-mounted rear, 1 boom-mounted)

GTH-5519-4 (Add $800.00)

Road lights - 2 front (turn/headlights), 1 back-up, 2 rear (stop/turn/tail)

GTH-5519-5 (Add $1,470.00)

Block heater

GTH-5519-6 (Add $270.00)

Adjustable upholstered supsension seat

GTH-5119-7 (Add $755.00)

Front steel mesh screen (for open canopy)

GTH-5519-8 (Add $645.00)

Exhuast scrubber for Duetz only

GTH-5519-9 (Add $2,070.00)

3 in. retractable seat belt (required for California customers)

GTH-5519-10

Foam-filled rough terrian tires

GTH-5519-11 (Add $4,025.00)

Solid rough terrain tires

GTH-5519-12 (Add $7,310.00)

Universal attach adapter (mounts to Genie Quick-Attach system to allow universal attachments)

GTH-5519-13 (Add $2,055.00)

Auxiliary hydraulics pressure locking valve

GTH-5519-14 (Add $820.00)

Genie Quick-Attach

GTH-5519-15 (Add $1,245.00)

48 in. side shift carriage (4 in. R/L)

GTH-5519-16 (Add $5,840.00)

48 in. rotating fork carriage (14 degrees R/L)

GTH-5519-17 (Add $5,840.00)

Set of two 48 in. forks (for side shift or rotating carriage, 1-3/4 x 4 x 48 in.)

GTH-5519-18 (Add $1,685.00)

Set of two 60 in. forks (in addition to standard pallet forks, 2 x 4 x 60 in.)

GTH-5519-19 (Add $2,290.00)

Set of 4 cubing tines (in addition to standard pallet forks 2 x 2 x 48 in.)

GTH-5519-20 (Add $2,200.00)

66 in. bucket with bolt-on cutting edge, 0.5/0.65 yd^3 struck / heaped (Genie Quick-Attach)

GTH-5519-21 (Add $1,615.00)

60 in. bucket with bolt-on cutting edge, 0.65/0.75 yd^3 struck / heaped (Genie Quick-Attach)

GTH-5519-22 (Add $2,990.00)

78 in. scrap grapple bucket, 0.68/0.83 yd^3 struck / heaped

GTH-5519-23 (Add $6,725.00)

6 ft. truss boom (Genie Quick-Attach)

GTH-5519-24 (Add $2,990.00)
