Category
Telehandlers
You can count on us for your Telehandlers needs.
 Genie Lift - Full Time 4WD
Item Details

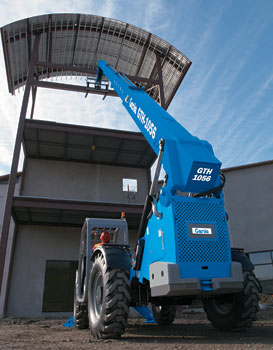

Genie Lift - Full Time 4WD
Item Name:
Genie Lift - Full Time 4WD
Item #:
GEN-GTH-1056
Average Rating:

Product Image Gallery:
Genie Lift - Full Time 4WD

Set up Charge May Apply.  Please contact us for details.

Specifications



Model

GTH-1056

Measurements

US

Maximum lift height

56 ft 10 in

Reach

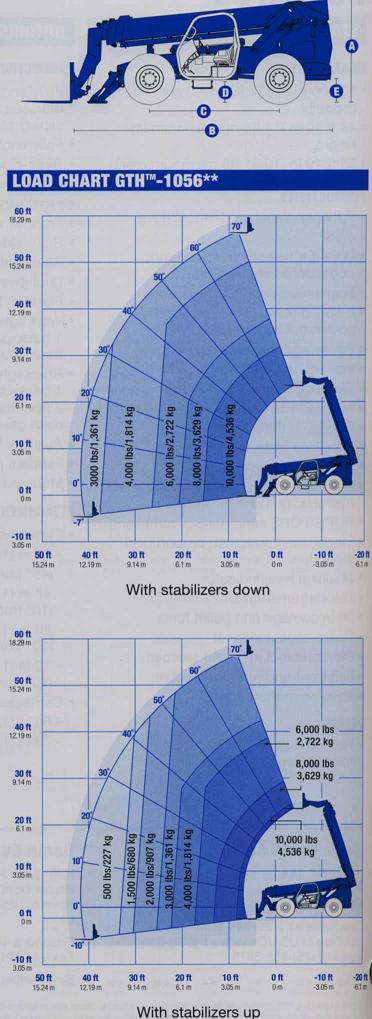

A. Height, stowed

B. Length, stowed (without forks)

42 ft

8 ft 6 in

21 ft

Width

C. Wheelbase

D. Ground clearance, center

E. Ground clearance, axle

8 ft 6 in

10 ft 8 in

1 ft 10 in

1 ft 6 in

Fork cross section

2.25 x 4 in

Productivity



Maximum lift capacity

10,000 lbs

Lift capacity at maximum height

4,000 lbs

Lift capacity at maximum reach

3,000 lbs

Raise/Lower boom

13/12 sec

Extend/Retract

16/15 sec

Frame leveling

10 degree side to side

Drive speed

17 mph

Draw bar pull

28,800 lbs

Turning radius, outside (4WS)

13 ft 3 in

Auxiliary hydraulic flow

2-15 gpm

Auxiliary hydraulic pressure

3,200 psi

Tires, standard size

14 x 24 in, 12 ply

Power



Power Source

Perkins 1104D-E44TA 4 cylinder diesel, 123 hp (95 kW)

John Deere 4045HF48 5 4 cylinder diesel, 125 hp (93.2 kW)

Electrical system

System voltage 12 volt

Alternator 95 amp

Battery 1000 CCA at 0 degree F (-18 degree C)

Hydraulic tank capacity

44 gal

Hydraulic system capacity (w/tank)

55 gal

Fuel tank capacity

35 gal

Weight



Weight

30,000 lbs

Standards Compliance



ANSI/ITSDF B56.6, ISO 3471, ISO 3449



Features

Standard Features

Measurements

10,000 lb (4,536 kg) maximum lift capacity

56 ft 10 in (17.32 m) maximum lift height

42 ft (12.80 m) maximum reach

Productivity

Full time planetary 4-wheel drive

4WS

Operator selectable front, crab, coordinated steering modes

Frame leveling 10 degree side to side

3-speed forward and reverse powershift transmission

Power assisted steering

Inboard wet disc service brakes

Wet disc spring applied parking brake

14 x 24 in 12-ply, air filled, all terrain tires

Front axle differential lock

Rear axle stabilization system

Twin axle mounted stabilizers

High efficiency/variable displacement hydraulic pump

ROPS/FOPS canopy (ISO compliant)

Single, multi-function, proportional joystick

Machine level indicator

Full instrumentation

48 in carriage and pallet forks

Boom angle indicator

Retractable 3 in (8 cm) seatbelt

Left front and rear tire fenders

Reverse motion alarm

Power

Perkins 123 hp Tier III turbo-charge diesel engine



Item Options
Fully enclosed cab (includes full glass, heater, defroster, wiper, washer, right side sliding window, split door)
GTH-1056-1 (Add $6,040.00)
Fully enclosed cab with air conditioning (includes full glass, heater, defroster wiper, washer, right side sliding window, split door)
GTH-1056-2 (Add $11,550.00)
Glass over skylight bars (for open canopy)
GTH-1056-3 (Add $695.00)
Front steel mesh screen
GTH-1056-4 (Add $625.00)
Right side steel mesh screen (for open canopy)
GTH-1056-5 (Add $500.00)
Cab heater (for open canopy)
GTH-1056-6 (Add $840.00)
Adjustable upholstered suspension seat
GTH-1056-7 (Add $725.00)
Dual joystick controls
GTH-1056-8 (Add $2,185.00)
Flashing beacon
GTH-1056-9 (Add $260.00)
Work lights (2 cab-mounted front, 1 back-up, 1 stop/tail)
GTH-1056-10 (Add $670.00)
Road lights (2 cab-mounted front, 1 back-up, 2 rear stop/turn/tail, 2 front turn)
GTH-1056-11 (Add $1,470.00)
Auxiliary hydraulic circuit to boom tip (3-15 GPM)
GTH-1056-12 (Add $3,290.00)
Fenders - complete set
GTH-1056-13 (Add $955.00)
Mounted disposable fire extinguisher
GTH-1056-14 (Add $225.00)
Air intake heater (John Deere engine)
GTH-1056-15 (Add $460.00)
Electric block heater
GTH-1056-16 (Add $270.00)
Foam-filled rough terrain tires
GTH-1056-17 (Add $5,805.00)
Foam-filled rock lug tires
GTH-1056-18 (Add $8,110.00)
Pneumatic rock lug tires
GTH-1056-19 (Add $6,270.00)
14 ft. variable reach truss boom (Quick-Attach
GTH-1056-20 (Add $3,390.00)
1 cu. yd. light duty rubbish bucket, 100 in. (specifiy slip-on forks or Quick-Attach)
GTH-1056-21 (Add $3,500.00)
60 in. full taper forks (set of two) 2 1/4 x 5 x 60 in.
GTH-1056-22 (Add $1,105.00)
60 in. pallet forks (set of two)
GTH-1056-23 (Add $510.00)
72 in. pallet forks (set of two) 2.25 x 4 x 72 in.
GTH-1056-24 (Add $980.00)
60 in. lumber forks (set of two)
GTH-1056-25 (Add $2,580.00)
Set of 6 cubing tines, 2 x 2 x 48 in.
GTH-1056-26 (Add $1,295.00)
Set of 6 cubing tines, 2 x 2 x 48 in. (in addition to standard pallet forks)
GTH-1056-27 (Add $3,900.00)
60 in. carriage (pin-on)
GTH-1056-28 (Add $705.00)
72 in. carriage (pin-on)
GTH-1056-29 (Add $855.00)
48 in. carriage (Quick-Attach)
GTH-1056-30 (Add $2,920.00)
60 in. carriage (Quick-Attach)
GTH-1056-31 (Add $3,255.00)
72 in. carriage (Quick-Attach)
GTH-1056-32 (Add $3,405.00)
48 in. rotating carriage (Quick-Attach, includes auxiliary hydraulic circuit)
GTH-1056-33 (Add $9,520.00)
60 in. rotating carriage (Quick-Attach, includes auxiliary hydraulic circuit)
GTH-1056-34 (Add $9,635.00)
72 in. rotating carriage (Quick-Attach, includes auxiliary hydraulic circuit)
GTH-1056-35 (Add $9,745.00)
72 in. swing carriage (Quick-Attach, includes auxiliary hydraulic circuit)
GTH-1056-36 (Add $11,910.00)
