Ohaus VN 5' x 5'/5,000 lbs. Cap.

Items that do not have prices listed on the site, please call us or fill out the price request on the same page. Odds are we have the item in stock!

Español

¿Necesita ayuda en español? ¡Oprima aquí!

Category

Floor Scales

Floor scales for many different types of weight applications.

Item Details

Item Name:

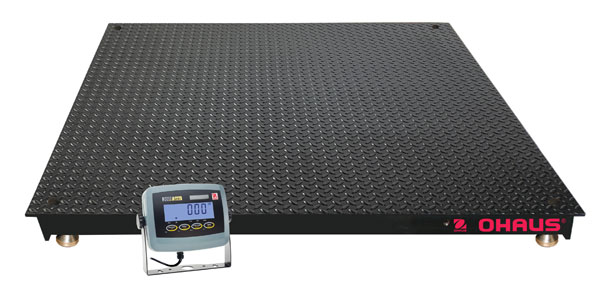

Ohaus VN 5' x 5'/5,000 lbs. Cap.

Item #:

OHA-VN31P5000X

Price/ea:

~~$2,059.00~~ $1,568.00

Average Rating:

Product Image Gallery:

Special Features

• 5,000 lb capacity with 1 lb readability in 2 popular platform sizes: 4’ x 4’ and 5’ x 5’

• 5mm / 0.196” thick painted carbon steel top plate with raised cross-hatch surface for added slip resistance

• Four NTEP certified shear beam load cells protected to IP67

• Side access NEMA 4X / IP65 dust and water protected stainless steel junction box with 16.5’ long indicator cable

• Four self-swiveling ball-in-cup feet, with top-access leveling adjustment for easy installation

• Internal structural bracing ensures platform rigidity during everyday use

• Carbon steel eyebolts (included) attach to side of platform for easy lifting and positioning

• OHAUS T31P indicator included

The OHAUS VN Series of floor scales are the value solution to your dry weighing needs in industrial and commercial applications.

Its high-quality construction is designed to minimize distortion under heavy loads, and ensures years of dependable use. NTEP certification ensures consistent weighing performance.

Available with ramps and mounting feet, the OHAUS VN Series floor platforms and scales offer a unique combination of value, quality and dependability

Specifications
Capacity (metric):	2500 kg
Readability (metric):	0.5 kg
Capacity (avoirdupois):	5000 lb
Readability (avoirdupois):	1 lb
NTEP Resolution:	1:5,000
Indicator included:	T31P
Housing:	5mm / 0.196 in painted carbon steel platform with ABS housed indicator
Load Cell - Rated IP 67 (kg):	4 x 2,500 lb nickel-plated alloy steel shear beam IP67 protected
Feet:	4 x self-swiveling ball-in-cup design with rubber bottom, adjustable height top leveling
Junction Box Material, Protection:	NEMA 4X / IP65, 304 stainless steel, with 16.5 ft / 3 m long indictor cable
Maximum Safe Static Load:	160% of maximum capacity (control load)
Protection:	IP67 for shear beam load cells, NEMA4X/IP65 for junction box
Weighing units:	lb or kg
Weighing modes:	Weighing, Counting*
Display:	1 in / 25 mm high, 6-digit, 7-segment bright white backlit LCD
Keyboard:	4-button mechanical switches
Stabilization time (seconds):	Within 2 seconds
Auto Zero Tracking:	Off, 0.5, 1 or 3d
Zeroing range:	0%, 2% or 100% of capacity
Span Calibration:	5 lb or kg to 100% of capacity
Interface:	RS232C, bidirectional
Operating Temperature Range:	14°F to 104°F / -10°C to 40°C
Powered By:	9VDC, 0.5A AC adapter or internal rechargeable sealed lead acid battery (100-hour typical operation with full charge) - both included
Platform Size (in/cm):	5ft x 5ft x 3.5 in
Shipping dimensions (WxDxH) (in/cm):	75.4 x 64 x 13.4 in / 1915 x 1626 x 340 mm
Net Wt. (lb/kg):	419 lb / 190 kg
Shipping Wt. (lb/kg):	533 lb / 242 kg
