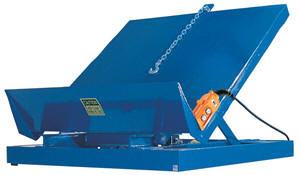

The Sliding Tilt Table has the same features as the Hinge Tilt Table and incorporates a patented sliding link-tilt design for maximum stability while occupying minimum space. As the table is tilted the front edge of the container moves away from the operator. The center-of-gravity of the load moves closer to the center of the frame minimizing the possibility of the unit tipping. Standard size is 48" wide by 48" long with a 4,000 lb. capacity. Features include: 8" lowered height, 45 tilt and 12" lip. Three sided access provides quick loading and unloading. Other sizes and capacities are available. The EHTT-L features a 2 HP 208-230/460V AC power unit with a two button hand held pendant control for tilt functions.  A pressure plated pump coupled to an application specific manifold featuring counterbalanced valves provide efficient, modulated flow controls.

Design: Sliding

Platform Size: 48"W x 48"L

Capacity: 4,000 lbs.

Level Height: 8"

Maximum Tilt: 45 Degrees

Net Weight: 1449 lbs.
