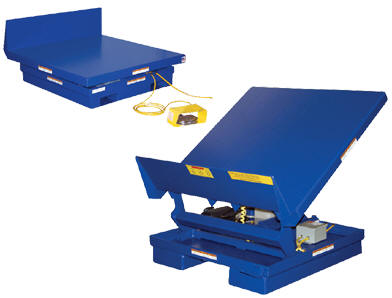

Now you can transport your tilter from workstation to workstation quickly and easily with a fork truck. Designed to position containers within reach of assembly line workers and machine operators. This unique design reduces fatigue by minimizing repetitive bending and stretching required to obtain components from containers. A selector pedal allows the operator to lift while tilting or tilt then lift. 2HP AC power unit with hand pendant control is standard 208-230/460V, 3PH. Features the same standard features as our original Single Scissor Lift and Tilt Table above.

Platform: 54"W x 48"L

Capacity: 4,000 lbs.

Level Height: 12"

Maximum Tilt: 40 Degrees

Power Unit: Internal

Net Weight: 1241 lbs.
