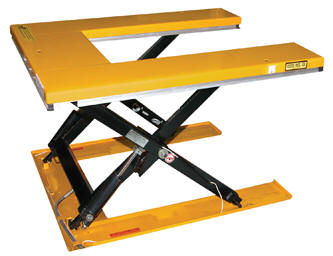

The open center on the "U" Type Electric Lift Tables enables a pallet truck to place a load on the platform. Units feature an external power pack equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed. Remote power pack comes complete with steel cover to protect the motor from dust and debris.  Raise and lower the unit using the UP and DOWN push-buttons on the 24V control box.  Safety features include electric toe guards, velocity fuse in cylinders, safety maintenance props and an emergency stop button on the control box.

Note: Can only be used with skids or open bottom containers when being loaded with a pallet jack.  The opening in the deck is 21 7/8"W x 41 1/4"L, so the pallet truck needs to be 20"W or less for this table to work.  Standard closed bottom pallets would need to be loaded with a fork lift or straddle type lifter.

---

Platform Size: 45-3/4"W x 63"L

Capacity: 3,000 lbs.

Lowered Height: 4-1/8"

Raised Height: 33-7/8"

Net Weight: 850 lbs.
