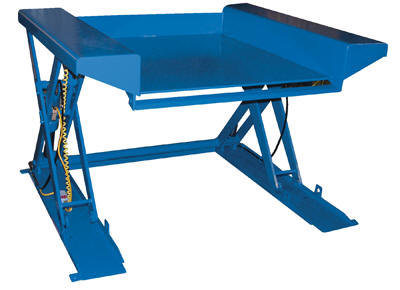

Designed for use when powered fork trucks are not available. Pallets can be loaded onto table with pallet trucks and raised to an ergonomic working height. Safety features include; front side electric toe guard to protect pinch points during lowering of the table, velocity fuse to stop falling due to loss of hydraulic pressure, foot control, maintenance prop, and upper travel limit switch to stop table at maximum height reducing motor wear. 2HP, 208-230/460V, 3-phase, 60 Hz totally enclosed motor is remote and can be located up to eight feet away from table.  3000 psi hydraulic components rating. Optional accordion skirting available, contact factory.

Standard Specifications:

• Industrial quality, 56 Frame, 2 HP Motor delivers best torque with minimal amperage draw and maximum life
• Voltage - 208-230/460 Volt, 60 cycle, 3 phase
• External Power Unit
• NEMA-1 Foot control with guard is standard (NEMA-4 Push button hand control is available)
• 24 Volt, fused control circuit.
• Hydraulic actuators have internal brass velocity fuse w/ stainless steel spring
• Conveniently located air bleed screw on hydraulic actuators
• Replaceable deck, main axle pins and bearing
• Rollers - Cold finished steel with case carburizing to .010 inch with Rockwell "C" 40
• Pins - Cold rolled and finished to bearing manufacturer's specifications
• Bearings - Self-lubricating with compressive strength of 44,000 psi
• Swaged on high pressure hose fittings, Pump intake/return hose is 1/2"
• Welding to meet A.W.S.

Platform Size: 52"W x 70"L

Capacity: 2,000 lbs.

Raised Height: 48"

Lowered Height: 1/2"

Overall Size: 75"W x 78"L x 10" H

Net Weight: 2205 lbs.
